Frame alignment – Harley 45 and Knuchkleads

Would you like to see if your motorcycle frame, forks and wheels are aligned?  We have a special offer for Harley 45 and Knucklehead owners, for a 70% discount price of 3000 Baht (usual price is 10,000 baht).  This offer is good between now and January 31, 2018.

We have a 3D laser scanner and advanced software to scan your bike and make a great looking report of possible alignment problems with your bike.  Our 3D scanner is the most advanced in Thailand, and the scanner + software cost us over 5M Baht.

Take a look at this Harley 45 scan, and we compare it to the actual CAD plans from Harley Davidson.

Harley 45 frame scan data superimposed on CAD frame data to check alignment.

Harley 45 frame scan data superimposed on CAD frame data to check alignment.

On this particular Harley 45, we found the frame was a little bent in the rear wheel area.  It was not serious, as the frame was perfectly aligned down the center axis.

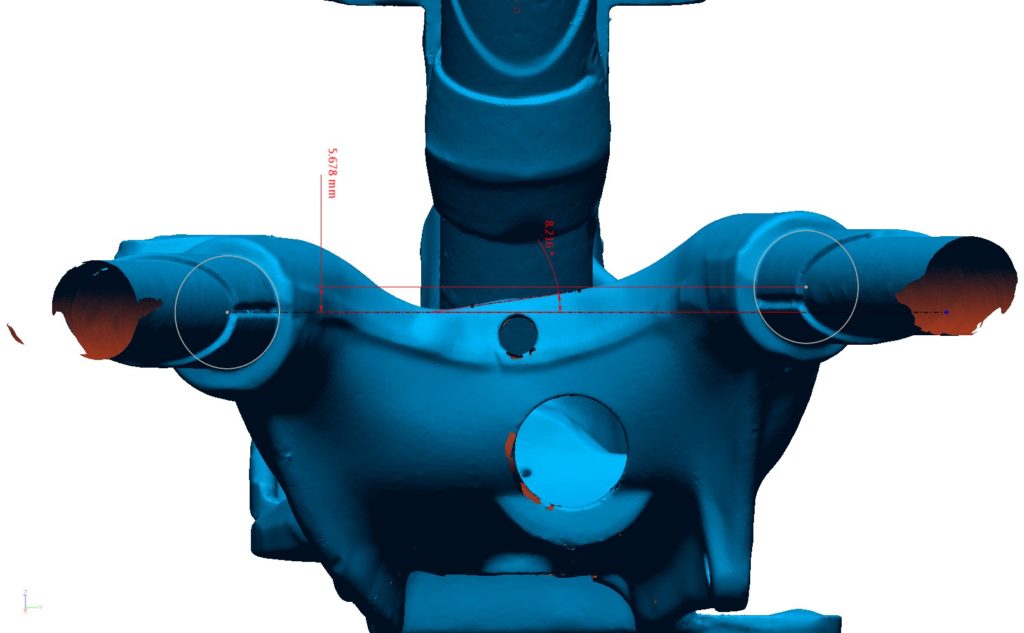

Harley 45 frame alignment is a little off. Good news, it is perfectly aligned down the center line of the bike.

Harley 45 frame alignment is a little off. Good news, it is perfectly aligned down the center line of the bike.

Why are we giving such a big discount?

  • We love motorcycles.
  • We have a project where we are making a CAD drawing for a Harley 45 frame. We have the original Harley Davidson drawings, but we want to compare real motorcycles to the original drawings.

BONUS:  We will give all customers an A0 (841 x 1189 mm) print of our finished drawing, and a PDF file you can print to any size you want.

Our shop is located on Sukhumvit Soi 3, near Nana.  The scanning process takes 3-5 hours, so if you cannot wait we have a secure garage where you can drop off your bike and we store safely, waiting for your return.

To speak in Thai, or English, please call Khun Kannapat  XXXXXXXXXXXXX. Feel free to contact Khun Pat (Farang) if you want to speak English on 081 867 8292.

Take a look at some of these other nice scanned images of a Harley 45, and the CAD, inspection data and 3D rendering we produce.  PLEASE NOTE:  For this offer, we only scan the outside of the bike and frame, we DO NOT disassemble and check the alignment of transmission forgings and other internal parts.  Sample report is located here: XXXXXXXXXXXXXXXX

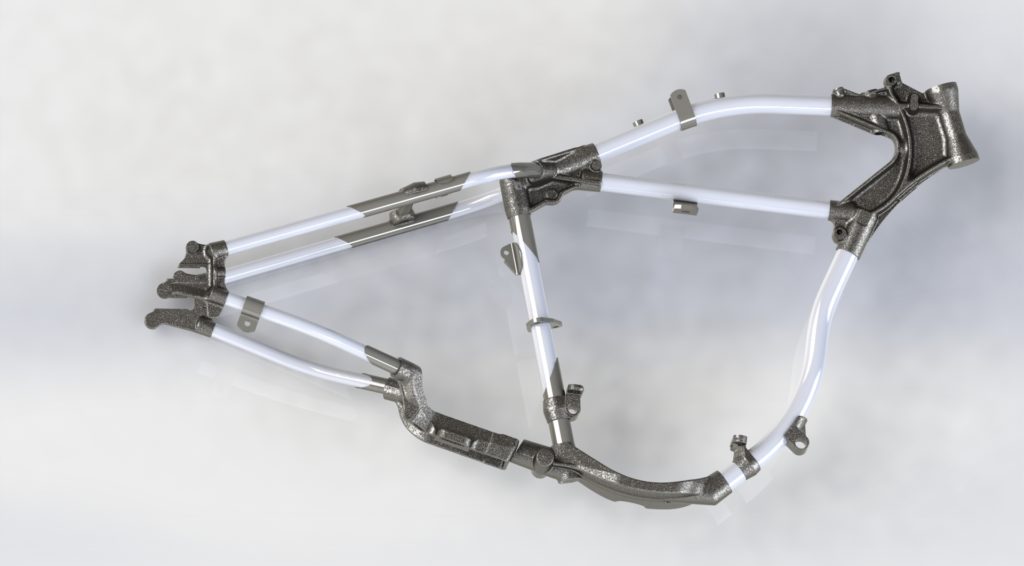

Harley 45 full frame 3D render from CAD

Harley 45 full frame 3D render from CAD

3D compare of the scan data and actual CAD data. Perfect alignment.

3D compare of the scan data and actual CAD data. Perfect alignment.

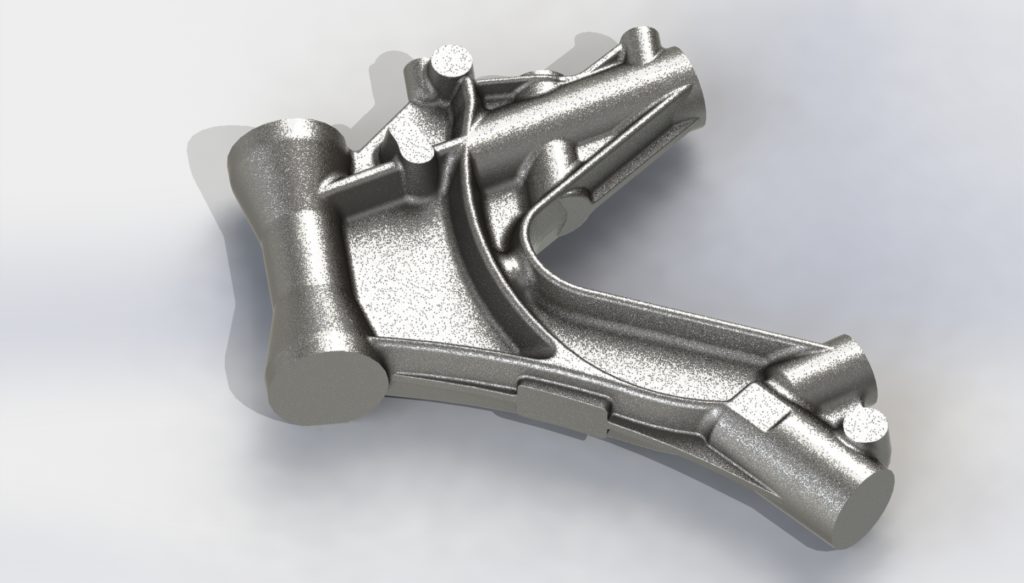

Harley 45 Steering head forging, 3D computer render from drawings.

Harley 45 Steering head forging, 3D computer render from drawings.

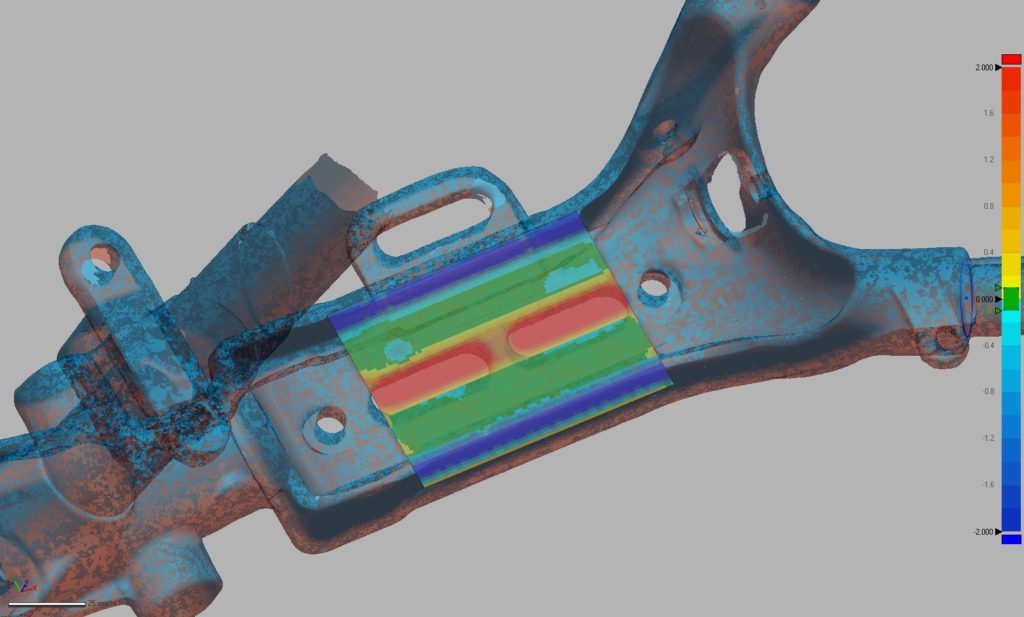

Transmission forging alignment check.

Transmission forging alignment check.

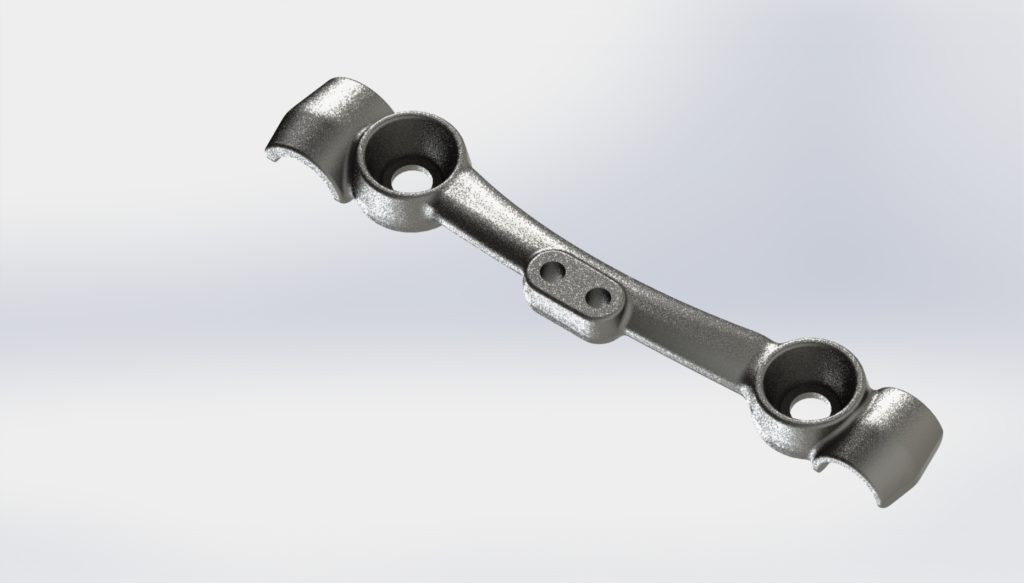

Computer 3D render of the Harley 45 frame triangle brace.

Computer 3D render of the Harley 45 frame triangle brace.
